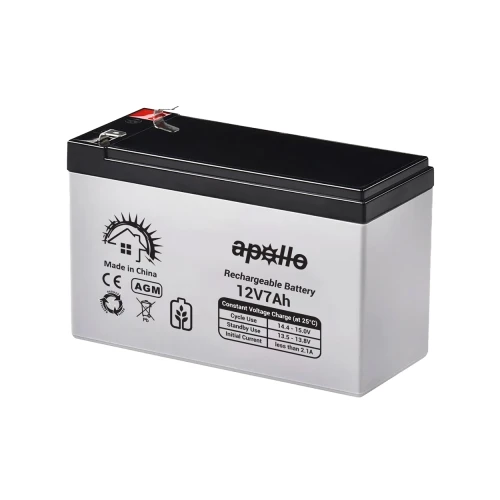

Name: Apollo 12V-7.0Ah AGM Battery
Brand: Apollo
SKU: 26
Availability: InStock

Apollo 12V-7.0Ah AGM Battery

Contact for price

Need a quote?

Talk to our team for availability, installation support, and pricing.

+8801700000000 Email us

Application:

· Emergency Power System

· Communication Equipment

· Telecommunication Systems

· Uninterruptible power supplies

· Electric toy car and wheelchairs, etc.

· Power tools

· Alarm system

· Marine equipment

· Medical equipment

· Fire and Security System

General Features:

· Heavy Duty Grid

· Mechanized assembly

· Non-spillable construction

· High Reliability and Stability

· Sealed and Maintenance-free

· Long Life and low self-discharge design

Construction:

· Positive… Lead dioxide

· Electrolyte …. Sulfuric acid

· Separator …. Fiber glass

· Negative….. Lead

· Safety Valve…. EPDR

· Terminal……..Copper

· Container ….. ABS (UL94-HB) Flame Retardant ABS (UL94-V0)

Specification:

Battery Model	Nominal Voltage		12V
	Rated Capacity (20 Hour rate)		7.0AH
	Cells Per Battery		6
Dimension	Length	Width	Height	Total Height
	151mm (5.94 inches)	65mm (2.56 inches)	94mm (3.7 inches)	100mm (3.94 inches)
Approx. Weight	2.0kg (4.41lbs) ± 3%
Capacity @ 25°C (77°F)	20-hour rate (0.36A, 10.8V)	10-hour rate (0.67A, 10.5V)	3-hour rate (1.97A, 10.8V)	1-hour rate (4.71A, 9.6V)
	7.2Ah	6.7Ah	5.91Ah	4.71Ah
Max. discharge current	105A (5 Sec.)
Internal Resistance	Full charged at 25°C (77°F) : Approx. 28mΩ
Capacity affected by Temp. (20 HR)	40°C (104°F)	25°C (77°F)	0°C (32°F)	-15°C
	102%	100%	85%	65%
Self-Discharge @25°C (77°F)	After 3 months storage		After 6 months storage	After 12 months storage
	91%		82%	64%
Charge method @25°C (77°F)	Cycle Use		Float Use
	14.40-14.70V (Initial charging current less than 2.1A)		13.50-13.80V
