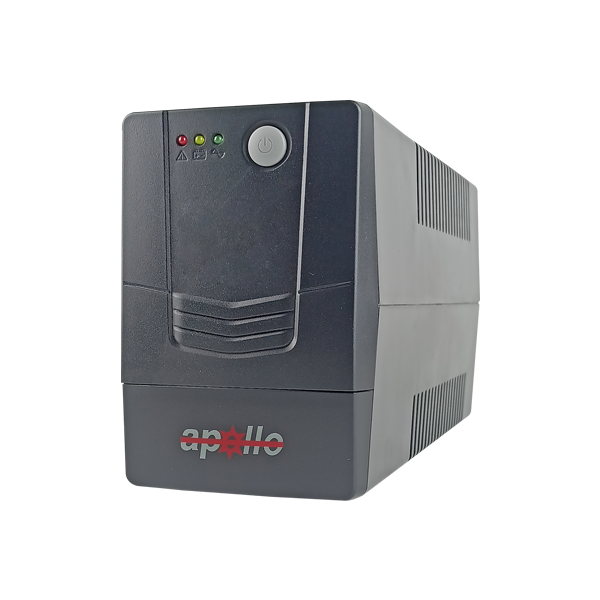

800VA Line Interactive UPS

Apollo 650VA Line Interactive UPS

Model

1065

Input

Voltage

220VAC ± 20~35% (Customizable)

Frequency

50Hz or 60Hz

Inv. O/P

Waveform

PWM Simulated Sinewave

Frequency

50 Hz or 60Hz ± 1Hz

Capacity

650VA

Voltage

220VAC ± 3~8%

Transfer Time

2ms

Battery

Types

Lead-Acid maintenance-free

DC Bus

12V/7.2A

Number

1 PC

Recharge Time

Typically 8 hours to 90% Charged

Backup Time

15~30 Minutes Depending on load connected (Long Backup Optional)

Protection

Over/Under Volt.

Switch to Bat. O/P when Mains over regulation range

Overload/Short

Fuse & current limited for both mains and Battery modes

Low Battery

Two stages; on battery drain after cut off

Surge

Meets IEEES87 Cat.A

Noise Filtering

EMI/RFI full time suppression

Mechanical

Socket Type

IEC/Universal/UK Socket

Socket No. (pcs)

1~4 IEC/UK/Universal Socket

Dim (WxHxD)mm

117x152x315

Net Weight (kgs)

6.5

Shipping Weight (kgs)

7

Environment

Ambient

0~40 degree C, 0~90% non-condensing

Audible

Less than 35 dBA (1M distance)

Warning

LED on Front

AC Normal: Green light Steadily, Backup: Yellow light intermittently, Fault: Red light

Signals

Beep Alarm

On Battery, Battery Low and Overload

Communication Port

DB9 Communication Port built in for Software Control (On Demand)

USB Option

98, 2000, NT, Novell, Unix applications (Optional)

Cold Start

It enables to activate UPS without Utility Power

Applications

Brand/ Clone Computers, PABX, Intercom, Printer, Fax
