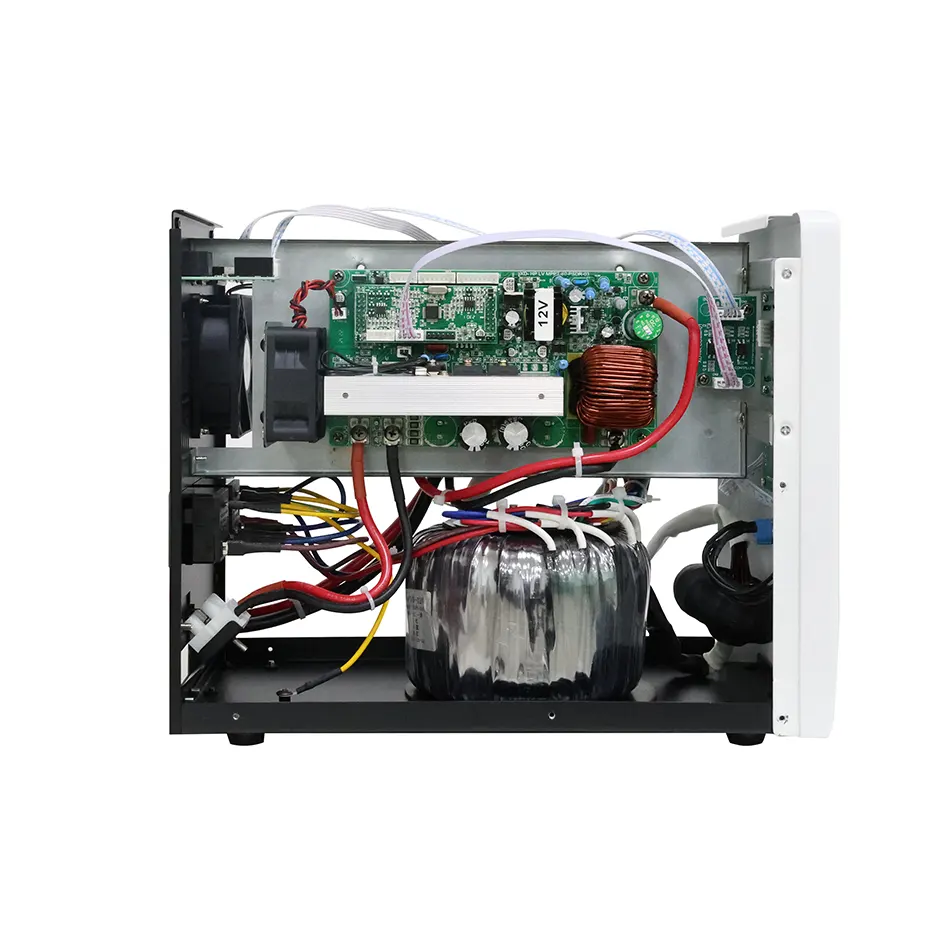

Name: Apollo 1000VA~4000VA Pure Sinewave Hybrid IPS
Brand: Apollo
SKU: 52
Availability: InStock

Apollo 1000VA~4000VA Pure Sinewave Hybrid IPS

Contact for price

Need a quote?

Email our team for availability, installation support, and pricing.

Email us

Pure sine wave output;
Wide power range from 700 watts to 40 kilowatts
Intelligent LCD integration display;
AC charge current 0-20A adjustable; battery capacity configuration more flexible;
Three types working modes adjustable:AC first, DC first, energy-saving mode;
Supports diesel or gasoline generator, adapt any tough electricity situation;
Mains power and generators can charge the battery, inverter can be used as an uninterruptible power supply.
Compatible with lead-acid and lithium batteries, smart battery charger design for optimized battery life.

Model:	AHU-1000/12	AHU-1250/24	AHU-2200/48	AHU-2500/48	AHU-4000/48
Power
Rated Power	700W	1000W	1600W	2000W	3200W
Phase Type	Single phase L-N ; Above 8kw Split phase can be customized L1-L2, L1-N, L2-N
Battery
Standard Battery Voltage	12/24VDC	12/24VDC	24/48VDC	24/48VDC	24/48VDC
Battery Type	Lead-acid battery / Lithium battery
AC Input
Rated Input Voltage	220VAC /230VAC/ 240VAC (Selectable)
AC Input Voltage Range	155VAC~285VAC (230VAC)
AC Input Frequency	45Hz~55Hz (50Hz), 55Hz~65Hz (60Hz)
AC Output
Output Wave	Pure Sine Wave
Conversion Efficiency	>85%
AC Output Voltage / Frequency Range (INV Mode)	220VAC±2% / 230VAC±2% / 240VAC±2%，50/60Hz±1%
Other
Protection	■ Battery under voltage protection ■ Battery overvoltage protection ■ Overload power protection ■ Inverter output short circuit protection ■ Temperature protection
Protection Degree	IP20
Display	LCD
Cooling Method	Cooling Fan in Intelligent Control
Communication	RS485/APP（WIFI monitoring or GPRS monitoring）
Working Mode (settable)	Battery Priority/Mains Priority
Operating Temperature	-15℃~40℃
Relative Humidity	0%~95% ,(No Condensation)
Dimensions and Weight
Product Size(LWHmm)	340x165x283			410x200x350
Packing Size(LWHmm)	405x230x340 (1PC) / 475x415x350 (2PC)			475x265x410
N.W.(kg)	9.5(1PC)	10.5(1PC)	11.5(1PC)	17	20.5
G.W.(kg)	11(1PC)	12(1PC)	13(1PC)	19	22.5

Name	Apollo 1000VA~4000VA Pure Sinewave Hybrid IPS
Categories	IPS
Subcategories	Sinewave IPS
Summary	Advanced Power • Smart Energy Management • Reliable Backup
Tags	Apollo IPS, Hybrid IPS, Pure Sinewave IPS, Sinewave Hybrid IPS

PDF opens in the reader. Images can be viewed here. Word and Excel files are available for download.

APOLLO PURE SINEWAVE - IPS (1000VA~4000VA) - Datasheet.pdf

PDF · pdf

Download
