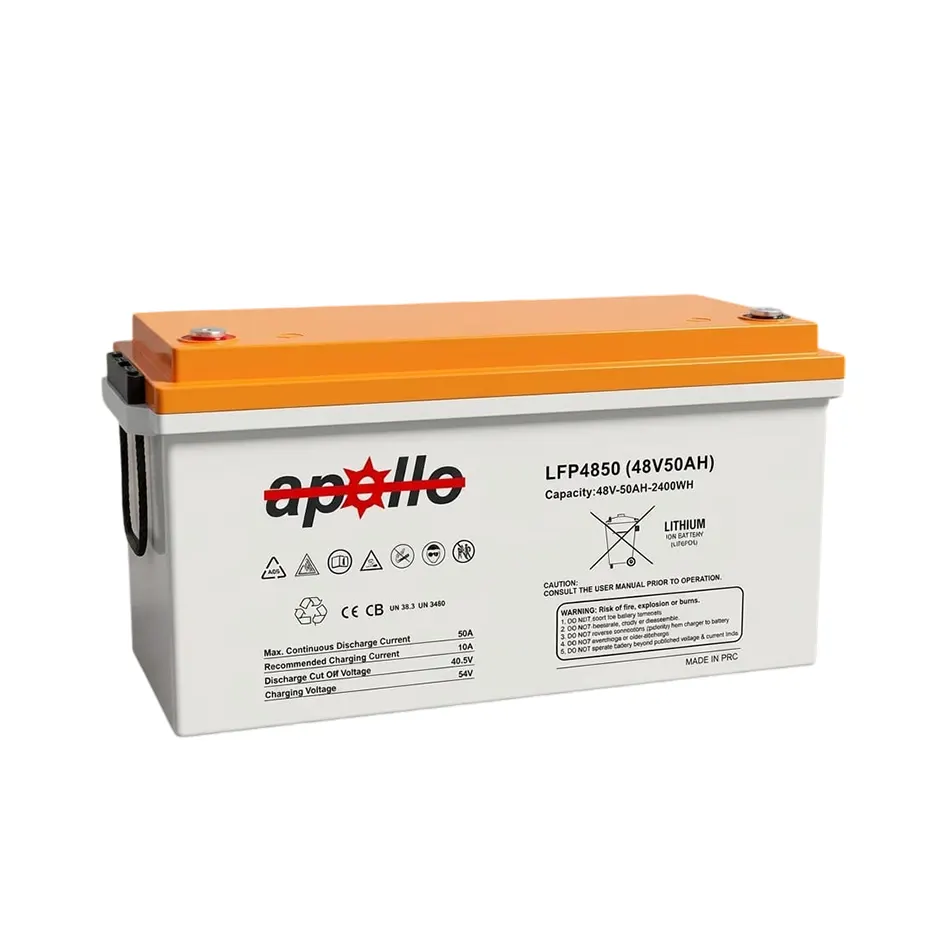

Apollo LFP4850 (48V 50Ah) Lithium Iron Phosphate Battery

Contact for price
Need a quote?

Email our team for availability, installation support, and pricing.

Categories
Subcategories

Description

Apollo Lithium iron phosphate battery module which designed for storage and power supply system applica-tion. This battery module integrated with intelligent BMS with big advantages on safety, cycle life, energy density, temperature range and environmental protection. This product specification describes the type, size, struc-ture, electrochemistry performance, service life, and BMS characteristics. The specification will be updated based on different customer requirement.

Advantages

  • The battery module consists of LFP cells, wire, BMS and ABS container.
  • Packed with high performance LFP single cell, long life, safety and wide temperature range
  • High energy density, small size, light weight, no pollution;
  • Packing with single cell container, fire retardant wire and copper connecting bar, stable and safe.
  • Built-in BMS, with battery voltage, current, temperature and health management.
  • LCD(optional) indicate the battery SOC and operating status.
  • Support Max 4pcs in series.
  • Flexible customization of dimensions More than 15 years design life, Stable performance, main-tenance-free

Specification

ELECTRICAL SPECIFICATIONS

BMS  SPECIFICATIONS


Cell Type - Chemistry
Li Fe Po4
Version
Softversion

Nominal Voltage
48V
Code
J-B015S60

Amp Hour Capacity
50AH
Primary Charge Current Alarm
70±5A
10S±3S
Dimensions
520*240*220mm
Second Charge Current Protection
NA

Weight
22.0±0.5kgs
Third Charge Current Protection
NA
Terminal Type
M8
High Voltage Protection
56.25±0.2V
2S±1S
Case Material
ABS-Sealed
Reconnect Voltage
53.25±0.4V

Case IP Rating
IP65
Primary Discharging Current Protection
70±5A
10S±3S
Series connections
Max to 51.2V
Second Discharging Current Protection
275±55A
0.3S±0.2S
Parallel connections
No limited
Third Discharging Current Protection
NA

Storage Temperature
(-10 to 40℃)
Low Voltage Protection
34.5±0.8V

Resistance - Milliohms
<15
Reconnect Voltage
36±0.4V

Self-Discharge per Month
< 2%
High Temp Protection
65±3℃

CHARGE SPECIFICATIONS

Reconnect Temp
50℃

Floating Charge Voltage
≤51.75V
Balancing voltage
49.5±0.5V

Boost Charge Voltage
≤54.0V
Balancing current
40±20mA

Recommend Charge Current
≤10A
Shortage current
600±120A

Max Charge current
≤50A



Charge current (0 to -10℃)
<0.1C



Charge current (-20 to -10℃)
<0.05C



Charge Temperature
(0 to 45℃)



DISCHARGE SPECIFICATIONS




Recommend Discharge current
≤50A



Max Cont Discharge current
≤55A



Max Discharge Voltage
≥34.5V



Discharge Temperature
(-20 to 60℃)



Additional Information

Name Apollo LFP4850 (48V 50Ah) Lithium Iron Phosphate Battery
Categories BATTERY
Subcategories Lithium Batteries
Summary Apollo Lithium iron phosphate Battery
Tags Apollo Battery, Apollo Lithium Battery, LFP4850

Files 1

PDF opens in the reader. Images can be viewed here. Word and Excel files are available for download.

Apollo LFP4850 (48V50AH)_Lithium Battery.pdf
