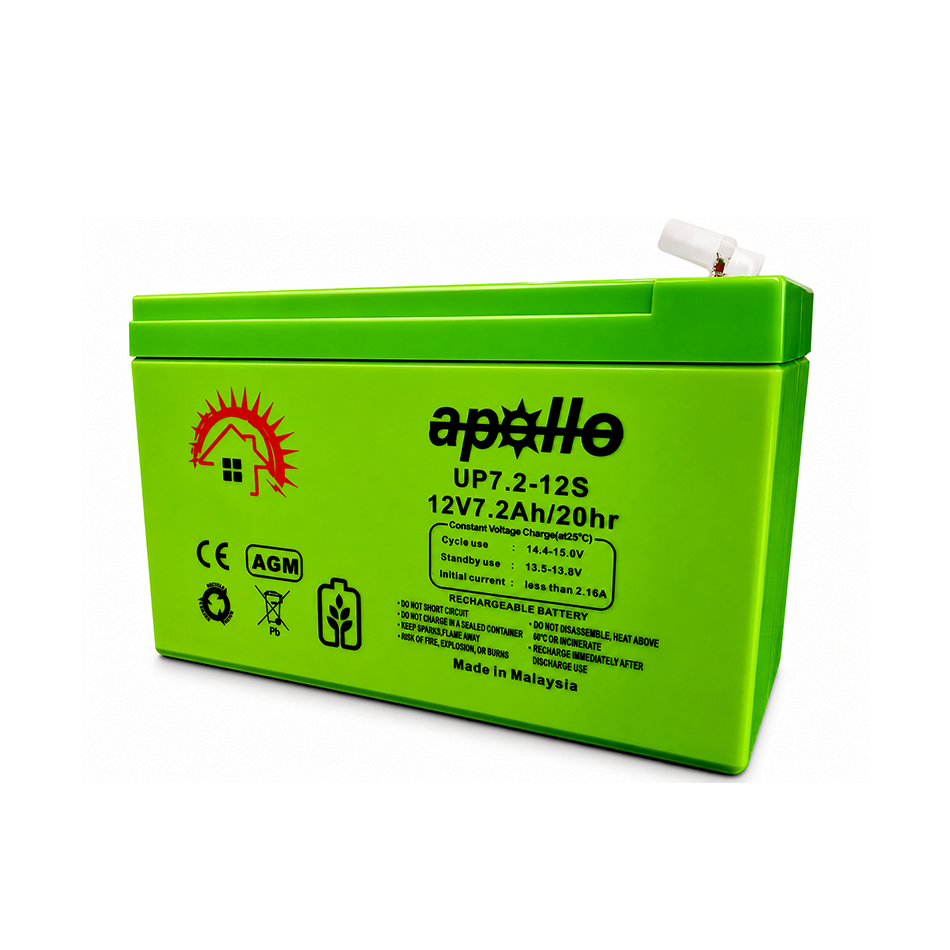

Apollo 12V7.2Ah AGM VRLA Rechargeable Battery

Name: Apollo 12V7.2Ah AGM VRLA Rechargeable Battery
Brand: Apollo
SKU: 58
Availability: InStock

High-performance 12V7.2Ah AGM VRLA rechargeable battery engineered for reliable, maintenance-free standby and cyclic backup power in UPS and emergency systems.

Apollo 12V7.2Ah AGM VRLA Rechargeable Battery

Contact for price

Need a quote?

Email our team for availability, installation support, and pricing.

Email us

Description

General Series battery

Apollo General (GP) Series VRLA batteries are designed with AGM (Absorbent Glass Mat) technology, High performance plates and electrolyte to give extra power output for common power backup system. GP Series Batteries are the general purpose batteries with 5 years floating design life at 25°C, Meet with IEC, BS, JIS and Eurobat standard, UL(MH62092), CE approved.

Application

Emergency Power System
Communication equipment
Telecommunication systems
Uninterruptible power supplies
Electric toy car and wheelchairs, etc.
Power tools
Alarm system
Marine equipment
Medical equipment
Fire and Security System

General Features

Heavy Duty Grid
Mechanized assembly
Non-spillable construction
High Reliability and Stability
Sealed and Maintenance-free
Long Life and low self-discharge design

Specification

Battery Model	Nominal Voltage			12V (6 cells per unit)
	Rated capacity (20 Hour rate)			7Ah

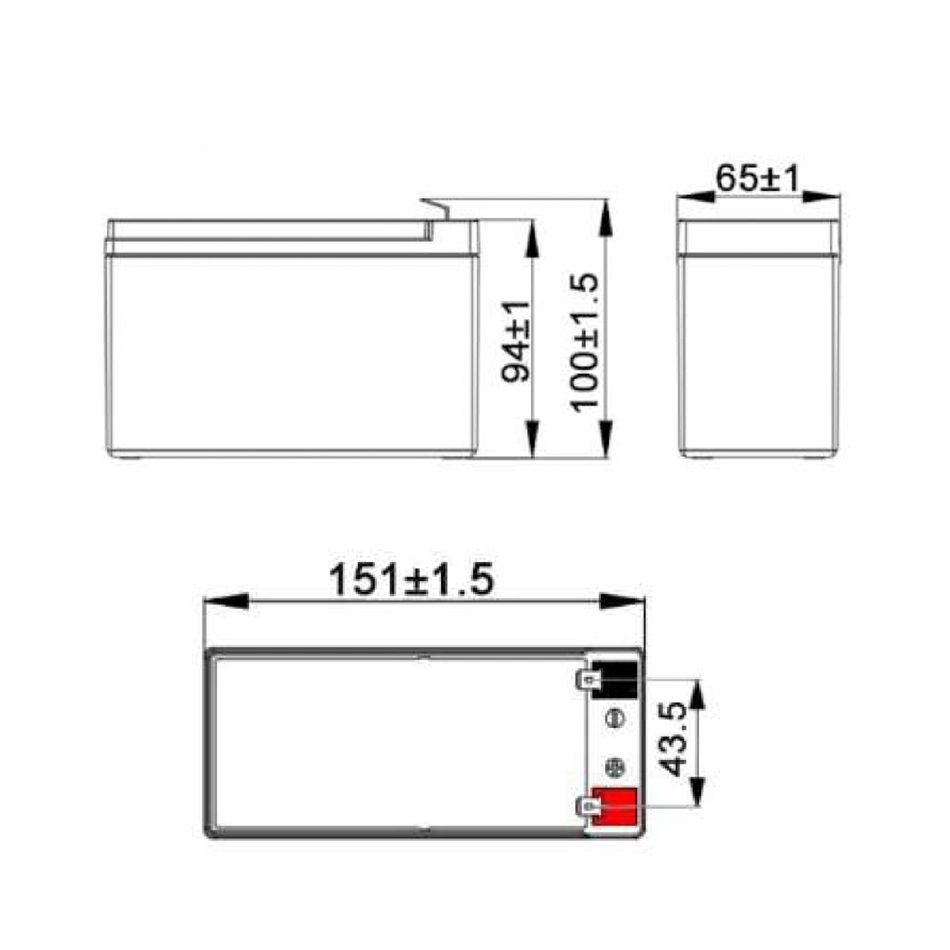

Dimension	Length	Width		Height		Total Height
	151mm (5.94 inches)	65mm (2.56 inches)		94mm (3.70 inches)		100mm (3.94 inches)
Approx. Weight	2.00kg(4.40 lbs) ± 3%
Internal Resistance	Full charged at 25℃ (77℉): Approx 25.4 (mΩ/25℃± 15%)
Maximum Charge Current	2.10A
Max. discharge current	105A (5Sec.)
Short-circuit current	270A
Operating Temperature Range	Nominal Operating Temperature	Discharge		Charge		Storage
	25℃(77℉)	-15℃~ 50℃(5℉~122℉)		-15℃~ 40℃(5℉~104℉)		-15℃~ 40℃(5℉~104℉)
Capacity @ 25℃ ( 77℉)	20 hour rate(0.36A,10.5V)	10 hour rate(0.663A,10.5V)		3 hour rate(1.799A,10.2V)		1 hour rate(4.40A,9.6V)
	7.20Ah	6.63Ah		5.40Ah		4.40Ah
Capacity affected by Temp.(20HR)	40℃ (104℉)	25℃ (77℉)		0℃ (32℉)		-15℃ (5℉)
	102%	100%		85%		65%
Charge method at 25℃(77℉)	Float Charging Voltage		Equalization Charging Voltage		Cycle Use Voltage
	13.5~13.8 VDC (-3mV/cell/℃)		14.1~14.4 VDC (-4mV/cell/℃)		14.4~15.0 VDC (-5mV/cell/℃)

Additional Information

Name	Apollo 12V7.2Ah AGM VRLA Rechargeable Battery
Categories	BATTERY
Subcategories	VRLA Batteries
Summary	High-performance 12V7.2Ah AGM VRLA rechargeable battery engineered for reliable, maintenance-free standby and cyclic backup power in UPS and emergency systems.
Tags	12V7.2Ah Battery, Apollo Battery, Rechargeable Battery, UP7.2-12S

Files 1

PDF opens in the reader. Images can be viewed here. Word and Excel files are available for download.

Apollo UP7.2-12S (12V7.2AH) Battery - Datasheet.pdf

PDF · pdf

Download
