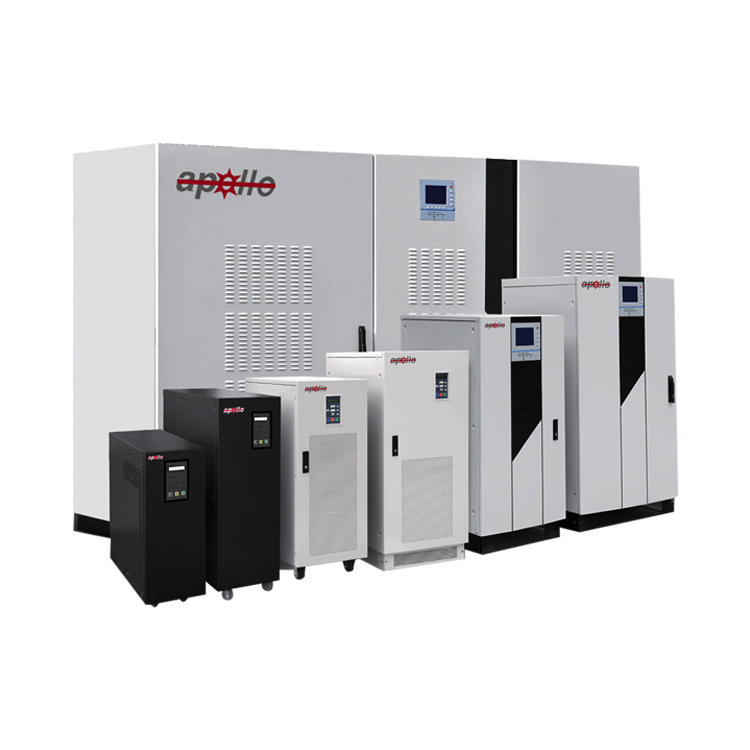

10Kva - 80Kva [3:3 Phase]

1.     True on-line dual conversion design

2.     Generator Compatible

3.     All  Protections over/low-voltage, overcurrent, overload

4.     Intelligent Battery Management, extended battery life

5.     Intelligent Self diagnose function, all kinds of fault protection

6.     Modularized  design of subsystems

7.     Bypass back feed protection, battery leakage protection

8.     Parallel Redundancy design, increase the system reliability

9.     Customizable wide input voltage range

10. Large size input LCD display on front panel

Technical Specifications: (3:3 Phase)

Model

3P10K

3P20K

3P30K

3P40K

3P60K

3P80K

Capacity (VA/Watts)

10KVA/ 09 KW

20 KVA/ 18 KW

30 KVA/ 27 KW

40 KVA/ 36 KW

60 KVA/ 54 KW

80 KVA/ 72 KW

INPUT

Operating Voltage range

380/400/415Vac (380-25% 415+20%), (3Ph+N+PE)

Operating frequency range

50/60Hz (±5Hz)

Power factor

>0.9(with filter)

OUTPUT

Output voltage

380/400/415Vac (± 1%)

Output frequency

50/60Hz (± 0.05%)

Harmonic distortion (THD)

<3% (linear load)

Crest factor

3:1 (Max.)

Efficiency

>89%

>90%

>91%
