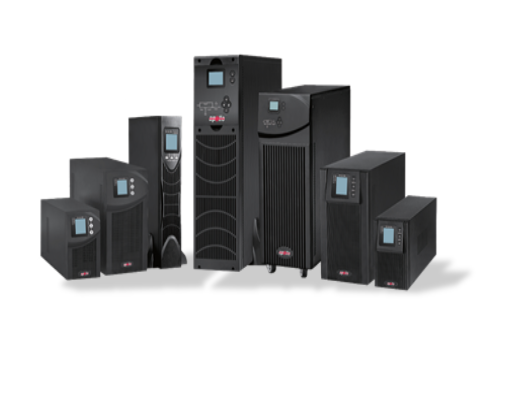

Apollo Online UPS 1KVA-10KVA (1x1 Phase) - (Power Factor .9)

      SPECIAL FEATURES:

§  True on-line dual conversion design

§  Generator Compatible

§  All  Protections over/low-voltage, overcurrent, overload

§  Intelligent Battery Management, extended battery life

§  Intelligent Self diagnose function, all kinds of fault protection

§  Modularized  design of subsystems

§  Bypass back feed protection, battery leakage protection

§  Parallel Redundancy design, increase the system reliability

§  Customizable wide input voltage range

§  Large size input LCD display on front panel

Technical Specification 2000 Series True Online UPS (1:1 Phase)

MODEL

2100HS

2150HS

2200HS

2300HS

2B6K

2B10K

2100HS-L

2150HS-L

2200HS-L

2300HS-L

2B6K-L

2B10K-L

CAPACITY (VA Rating)

1.0 KVA

1.5 KVA

2.0 KVA

3.0 KVA

6.0 KVA

10.0 KVA

INPUT

Voltage

Single Phase, 110Vac~ 290Vac

Frequency

50 Hz (60 Hz on request) ± 5%

Power factor

> 0.98% (full load)

OUTPUT

Voltage

220Vac

Voltage Regulation

220Vac ± 0.5%

Transient Response

± 3~4% under full load, change and corrected within 2 ms

Wave form

Pure Sinewave THD<3%

Power factor

0.8

Frequency

50 / 60Hz, ± 0.5%

Crest Factor

3:1

Overload

Continuous alarming, switch to bypass, auto recovery upon removing of load

Overload Capacity

<110% load Continuous

110-125% load 12 Minutes

125-150% load 10 Minutes

>150% load: by pass

Battery

Battery Type

Maintenance free lead-acid batteries

DC Voltage

36VDC

48VDC

72VDC

96VDC

192VDC

192VDC

Backup time

15-30 minutes depending on load

External Battery

Up to 8 hours long time backup depends on external battery

Supplementary Charger

Optional 200W/500W charger for extended back-up application

Recharge time

5~8 hours

Cold Start

Yes, UPS cab be started without AC source

Battery Cabinet
