Name: Apollo 8KV~40KV Pure Sinewave Hybrid IPS
Brand: Apollo
SKU: 55
Availability: InStock

Apollo 8KV~40KV Pure Sinewave Hybrid IPS

Contact for price

Need a quote?

Email our team for availability, installation support, and pricing.

Email us

Pure sine wave output;
Wide power range from 700 watts to 40 kilowatts
Intelligent LCD integration display;
AC charge current 0-20A adjustable; battery capacity configuration more flexible;
Three types working modes adjustable:AC first, DC first, energy-saving mode;
Supports diesel or gasoline generator, adapt any tough electricity situation;
Mains power and generators can charge the battery, inverter can be used as an uninterruptible power supply.

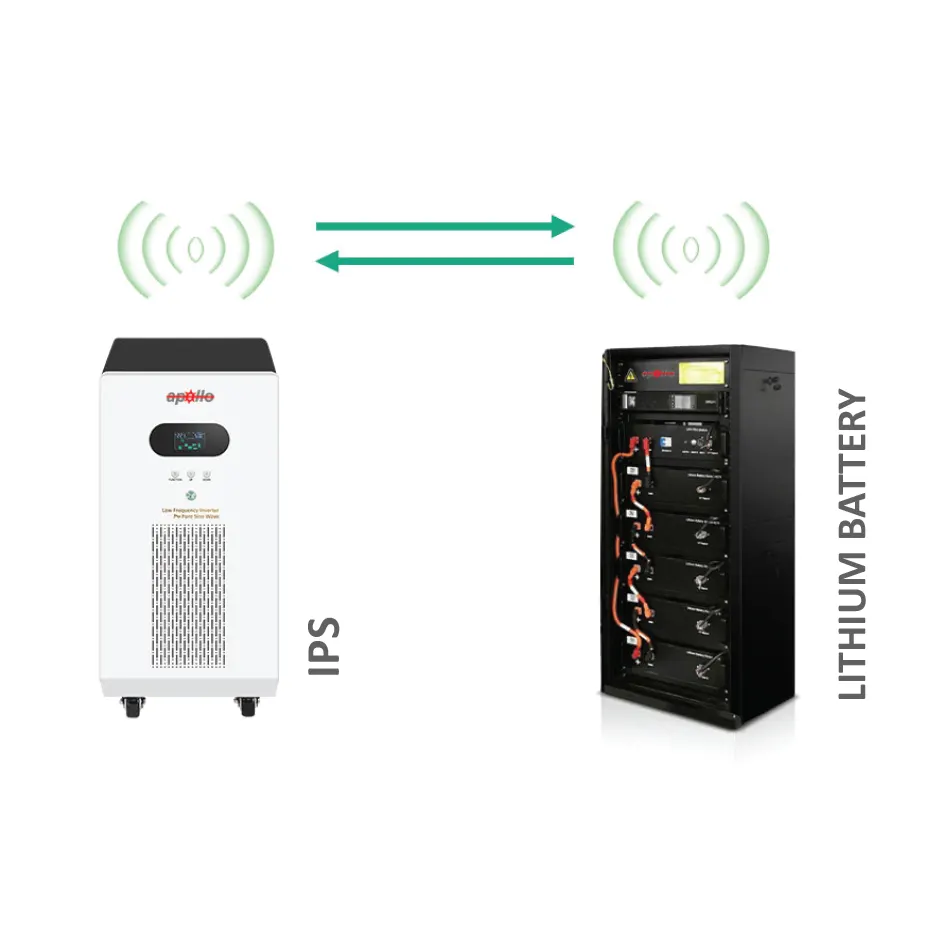

Compatible with lead-acid and lithium batteries, smart battery charger design for optimized battery life.

Model	AHU-8K/48/96	AHU-10K/192	AHU-12K/96/192	AHU-15K/192	AHU-20K/192	AHU-25K/240	AHU-30K/240	AHU-40K/384
Power
Rated Power	8KW	10KW	12KW	15KW	20KW	25KW	30KW	40KW
Battery
Standard Battery Voltage	48/96/192VDC	48/96/192VDC	96/192VDC	192VDC	192VDC	240VDC	240VDC	384VDC
Battery Type	Lead-acid battery / Lithium battery
AC Input
Rated Input Voltage	220VAC /230VAC/ 240VAC (Selectable)
AC Input Voltage Range	220VAC±2% / 230VAC±2% / 240VAC±2%，50/60Hz±1%
AC Input Frequency	45Hz~55Hz (50Hz), 55Hz~65Hz (60Hz)
AC Output
Output Wave	Pure Sine Wave
Conversion Efficiency	>85%
AC Output Voltage/Frequency Range (INV Mode)	110VAC±2% / 120VAC±2% / 220VAC±2% / 230VAC±2% / 240VAC±2%，50/60Hz±1%
Other
Protection	■ Battery under voltage protection ■ Battery overvoltage protection ■ Overload power protection ■ Inverter output short circuit protection ■ Temperature protection
Protection Degree	IP20
Display	LCD
Cooling Method	Cooling Fan in Intelligent Control
Communication	RS485/APP（WIFI monitoring or GPRS monitoring）
Working Mode (settable)	Battery Priority/Mains Priority
Operating Temperature	-15℃~40℃
Relative Humidity	0%~95% ,(No Condensation)
Dimensions and Weight
Product Size(LWHmm)	540x350x695			593x370x820			721x400x1002
Packing Size(LWHmm)	600410810			656420937			775x465x1120
N.W.(kg)	66	70	77	110	116	123	167	192
G.W.(kg)	77	81	88	124	130	137	190	215

Name	Apollo 8KV~40KV Pure Sinewave Hybrid IPS
Categories	IPS
Subcategories	Sinewave IPS
Summary	Advanced Power • Smart Energy Management • Reliable Backup
Tags	Apollo IPS, Hybrid IPS, Pure Sinewave IPS, Sinewave Hybrid IPS

PDF opens in the reader. Images can be viewed here. Word and Excel files are available for download.

APOLLO PURE SINEWAVE - IPS 8KV~40KV - Datasheet.pdf

PDF · pdf

Download
