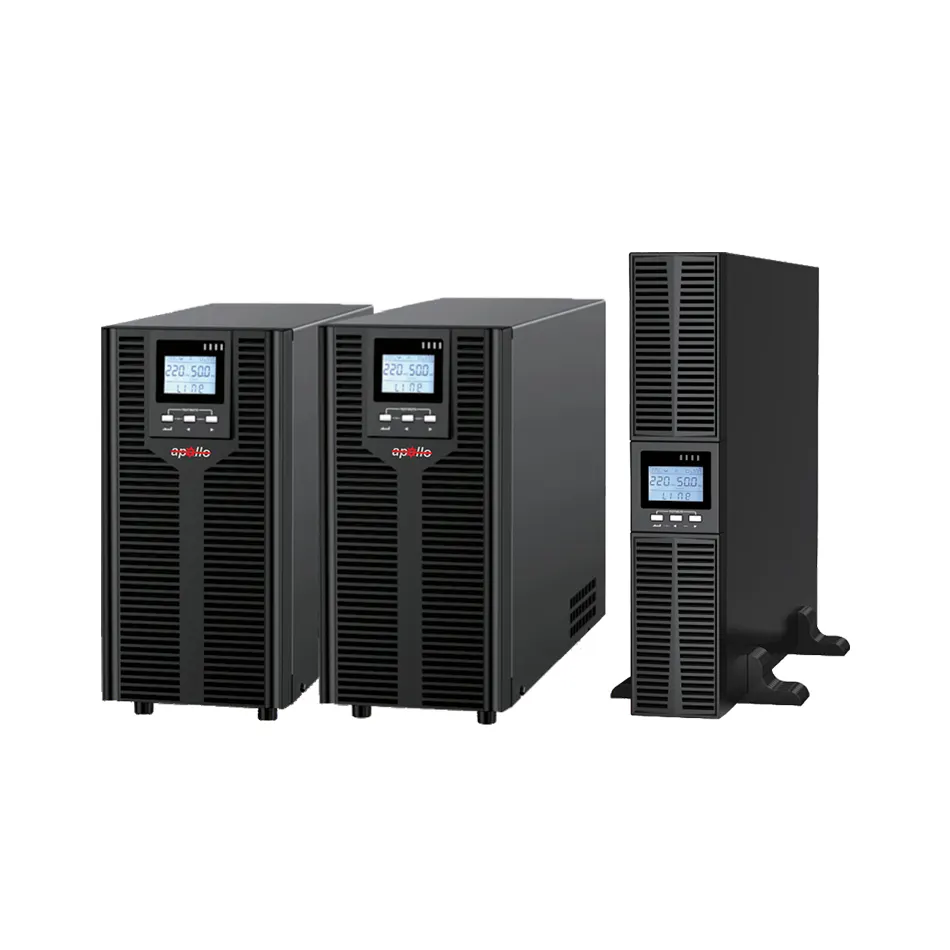

Apollo 6-10KVA Lithium Battery Type Online UPS

Name: Apollo 6-10KVA Lithium Battery Type Online UPS
Brand: Apollo
SKU: 62
Availability: InStock

Online Double Conversion 6-10KVA Lithium Battery Type Online UPS

Apollo 6-10KVA Lithium Battery Type Online UPS

Contact for price

Need a quote?

Email our team for availability, installation support, and pricing.

Email us

Description

Features:

High frequency on-line double conversion technology
Advanced DSP and 3-level technology
Output power factor 1.0
Active power factor correction (APFC), input power factor up to 0.99
High efficiency 95% (up to 98% in ECO mode)
Advanced digital parallel technology
Wide input voltage range (110~288 Vac) and frequency range (40~ 70 Hz)
50/60 Hz frequency auto sensing
Two modes of frequency conversion: 50 Hz input / 60 Hz output or 60 Hz input / 50 Hz output
Dual-input design, supporting independent bypass
Flexible battery configuration (settable 60-80 pcs batteries)
Digitally controlled charger
High charging current available (Max. 12 A)
Charging voltage and current configured by demands
Linear derating in low voltage input reducing battery discharging times, extending the service life of battery
Intelligent battery management, automatic floating / equalizing charge control, charger dormancy control, increasing battery life by 50%
Ability to switch on the UPS with batteries
Settable delayed start time when mains power is restored, reducing the impact on power grid or generator
Fan speed varies intelligently with temperature, reducing noise and extending its service life
Equipped with self-aging function
Compact internal layout, miniaturized the complete unit for small footprint
LCD+LED display, multi-functional keys operation, friendly human-machine interface
Powerful background software for parameters configuration
Advanced multi-platform communications: RS232, USB, RS485, SNMP and dry contacts communication interfaces
Effective software and hardware protection function, robust self-diagnostic function, and abundant event log for check

Available Options

RS232 and smart card slot included
Optional parallel function, battery temperature compensation, SNMP card, USB, RS485 card, dry contacts, EMD, and SMS alarms

Specification

MODEL	6KHRT Li	10KHRT Li
Capacity	6kVA / 6kW	10kVA / 10kW
INPUT
Input wiring	Single-phase three-wire (1Φ + N + PE)
Rated voltage	208 / 220 / 230 / 240 Vac
Voltage range	110 ~ 176 Vac (linear derating between 50% and 100% load); 176 ~ 288 Vac (no derating)
Rated frequency	50 / 60 Hz (auto-sensing)
Frequency range	40 ~ 70 Hz
Power factor	≥ 0.99
Bypass voltage range	- 40% ~ +15% (settable)
Total harmonic distortion (THDi)	≤ 5%
OUTPUT
Output wiring	Single-phase (L-N)
Rated voltage	208 (PF=0.9) / 220 / 230 / 240 Vac
Voltage regulation	± 1%
Frequency	Synchronized to bypass in mains mode; 50 / 60 Hz ±0.1% Hz in battery mode
Waveform	Sinusoidal
Power factor	1
Total harmonic distortion (THDv)	≤ 1% (linear load); ≤ 4% (non-linear load)
Crest factor	3:1
Overload	105% ~ 110% for 10 min, 110% ~ 125% for 1 min, 126% ~ 150% for 30 s
BATTERIES
DC voltage	192 Vdc (192 ~ 256 Vdc settable)
Number of battery	60 pcs (60 ~ 80 settable)
Charging current	5 A (default), 1 ~ 5 A settable; 12 A (optional)
Recharge time	depend on the capacity of battery
SYSTEM
Efficiency	≥ 94% at 100% load, max. 95% at 60% load, ≥ 98% in ECO mode
Transfer time	0 ms
Protections	Short-circuit, overload, overtemperature, battery low voltage, overvoltage, undervoltage and fan failure
Max. number of parallel connections	4
Communications	RS232 (standard), USB / RS485 / dry contacts / SNMP / battery temperature compensation (optional)
Display	LCD + LED
OTHERS
Operating temperature	0°C ~ 40°C
Storage temperature	-25°C ~ 55°C (without battery)
Relative humidity	0 ~ 95% (non-condensing)
Altitude	≤ 1000 m, derating 1% for each additional 100 m
IP rating	IP 20
Noise level at 1 m	≤ 55 dB	≤ 58 dB

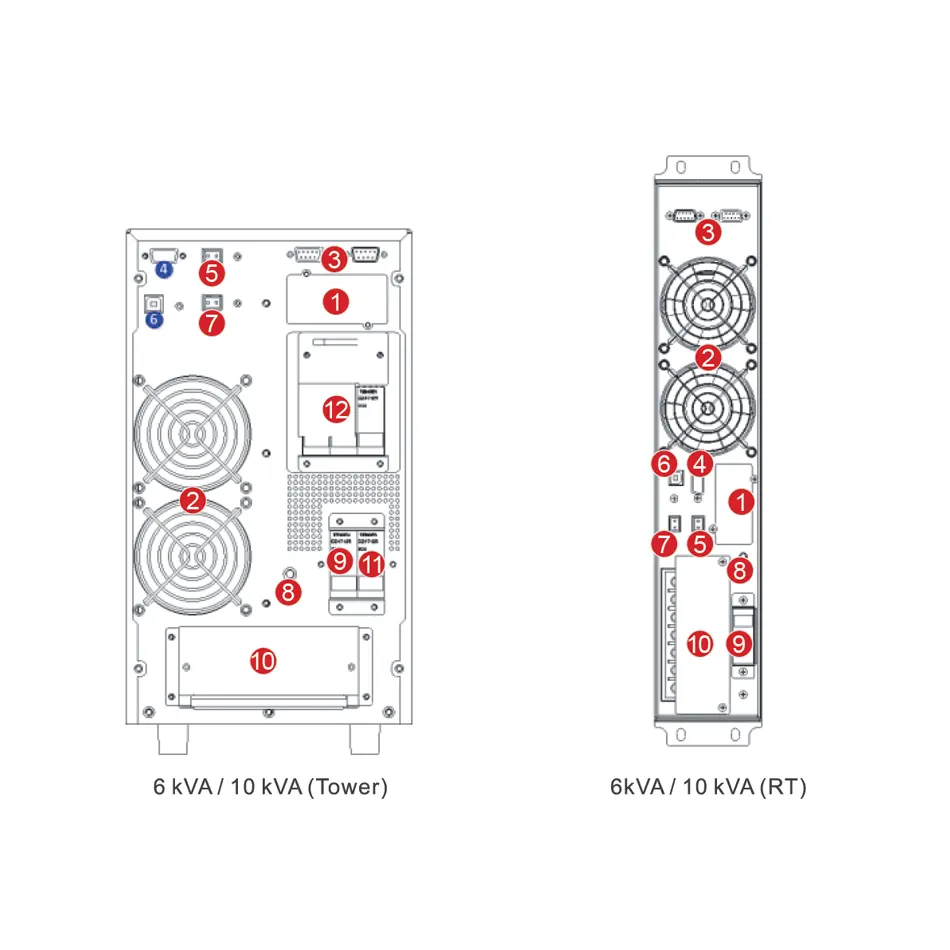

Dimensions (W × D × H) (mm)	191 × 465 × 350 (Tower) 440 × 580 × 88 (RT)	191 × 495 × 350 (Tower) 440 × 580 × 88 (RT)
Packaged dimensions (W × D × H) (mm)	318 × 595 × 475 (Tower) 514 × 696 × 168 (RT)	318 × 617 × 475 (Tower) 514 × 696 × 168 (RT)
Net weight (kg)	14.5 (Tower), 12 (RT)	16.5 (Tower), 14 (RT)
Gross weight (kg)	16 (Tower), 14 (RT)	18 (Tower), 16 (RT)

Additional Information

Name	Apollo 6-10KVA Lithium Battery Type Online UPS
Categories	UPS
Subcategories	Online UPS
Summary	Online Double Conversion 6-10KVA Lithium Battery Type Online UPS
Tags	Apollo UPS, Lithium Battery Type UPS, Online UPS
