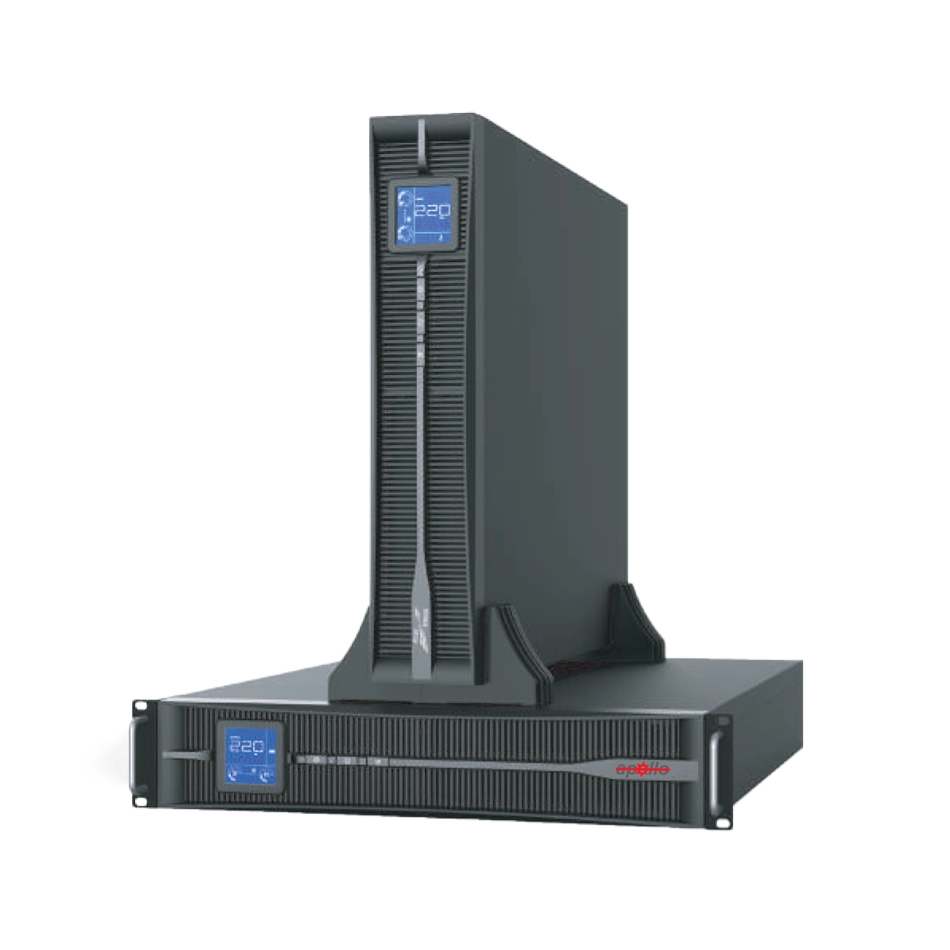

Name: Apollo 1-3KVA Lithium Battery Type Online UPS
Brand: Apollo
SKU: 57
Availability: InStock

Apollo 1-3KVA Lithium Battery Type Online UPS

Apollo 1-3KVA Lithium Battery Type Online UPS

Contact for price

Need a quote?

Email our team for availability, installation support, and pricing.

Email us

Description

FEATURES:

High frequency on-line double conversion technology
DSP (Digital signal processors) control technology
Active power factor correction (APFC), input power factor up to 0.99
Output power factor 0.9
Wide input voltage range (110 V ~ 300 Vac) and frequency range (40~70 Hz)
Auto sensing frequency
50/60 Hz frequency conversion
Cold start
Effective software and hardware protection
Linear derating in low voltage input reducing battery discharging times
Fan speed varies intelligently with temperature, reducing noise and extending its service life
Use lithium battery (High reliability, high power and energy density, Providing greater autonomy (15 min at full load for standard model UPS), Long cycle life (≥ 2000 cycle times)

Greater performance at high/low temperature
Advanced battery management (ABM)
Rotatable display panel
Multi-platform communications: RS232 (standard), USB/RS485/SNMP/dry contacts (optional)

Available Options

Optional USB, RS485 card, AS400 dry contacts, SNMP card, SMS alarms, EPO function, MBS (External maintenance bypass switch)

Specification

MODEL	A1000S-LiB	1KHRT Li	A2000S-LiB	2KHRT Li	A3000S-LiB	3KHRT Li
Capacity	1 kVA / 900 W		2 kVA / 1800 W		3 kVA / 2700 W
INPUT
Rated voltage	208 / 220 / 230 / 240 Vac
Voltage range	110 ~ 176 Vac (linear derating between 50% and 100% load); 176 ~ 280 Vac (no derating); 280 ~ 300 Vac (derating 50%)
Frequency	40 ~ 70 Hz (auto-sensing)
Power factor	≥ 0.99
Bypass voltage range	-25% ~ +15% (settable)
Total harmonic distortion (THDi)	≤ 6%
OUTPUT
Voltage	208 / 220 / 230 / 240 Vac (settable via LCD)
Voltage regulation	± 1%
Frequency	45 ~ 55 Hz or 55 ~ 65 Hz (synchronized range); 50 / 60 Hz ± 0.1 Hz (battery mode)
Waveform	Sinusoidal
Power factor	0.9
Total harmonic distortion (THDv)	≤ 2% (linear load); ≤ 5% (non-linear load)
Crest factor	3:1
Overload	105% ~ 125% for 1 min, 125% ~ 150% for 30 s, > 150% for 300 ms
BATTERIES
Battery type	Lithium iron phosphate Battery
DC voltage	25.6V	48V	51.2V	48V	76.8V	48V
Inbuilt battery	8×3.2 V / 12 Ah	/	16×3.2 V / 12 Ah	/	24×3.2 V / 12 Ah	/
Charging current (max.)	1 A	6 A	1 A	6 A	1 A	6 A
Recharger time	Standard model: 90% capacity restored in 11 hours; Long time model: depend on the capacity of battery
SYSTEM
Efficiency	≥ 90% (Mains mode)		≥ 91% (Mains mode)		≥ 92% (Mains mode)
	≥ 85% (Battery mode)		≥ 86% (Battery mode)		≥ 87% (Battery mode)
	≥ 95% (ECO mode)		≥ 96% (ECO mode)		≥ 97% (ECO mode)
Transfer time	Mains mode to battery mode: 0 ms Inverter mode to bypass mode: 4 ms (typical)
Protections	Short-circuit, overload, overtemperature, battery discharge protection and fan testing protection
Communications	RS232 (standard), USB / RS485 / dry contacts / SNMP (optional)
Display	LCD + LED
Standards	EN 62040-1, EN 62040-2, EN 61000-3-2, EN 61000-3-3, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, IEC 61000-2-2, IEC 62040-2, IEC 62040-1, ISO 9001:2015
OTHERS
Operating temperature	0℃ ~ 40℃
Storage temperature	-25℃ ~ 55℃ (without batteries)
Relative humidity	0~95% (non-condensing)
AltitueIP rating Noise level at 1m	≤ 1000 m, derating 1% for each additional 100 m IP 20 ≤ 50 dB
Dimensions (W × D × H) (mm)	440 × 468 × 88	440 × 468 × 88	440 × 583 × 88	440 × 468 × 88	440 × 683 × 88	440 × 468 × 88
Packaged dimensions (W×D×H) (mm)	545 × 598 × 198	545 × 598 × 198	545 × 707 × 201	545 × 598 × 198	545 × 807 × 201	545 × 598 × 198
Net weight(kg)	10.6	7.6	19	9.7	25	10.6
Gross weight(kg)	13.6	10.6	23	14	29	14.6

Additional Information

Name	Apollo 1-3KVA Lithium Battery Type Online UPS
Categories	UPS
Subcategories	Online UPS
Summary	Online Double Conversion 1-3KVA Lithium Battery Type Online UPS
Tags	1-3KVA Online UPS, Apollo UPS, Lithium Battery Type UPS, Online UPS

Files 1

PDF opens in the reader. Images can be viewed here. Word and Excel files are available for download.

APOLLO 1-3KVA UPS_Lithium Battery Type - Datasheet.pdf

PDF · pdf

Download

Apollo 1-3KVA Lithium Battery Type Online UPS
