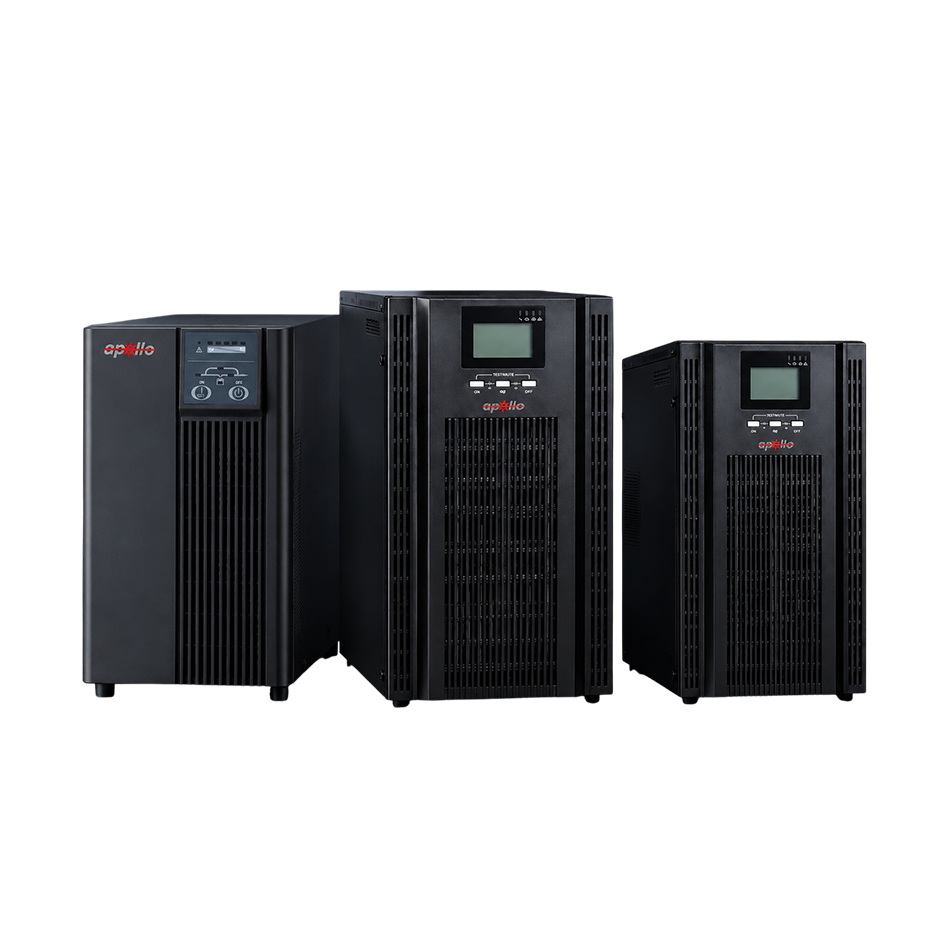

Name: Apollo 15~80KVA 3:1 Phase True Online UPS
Brand: Apollo
SKU: 60
Availability: InStock

Apollo 15~80KVA 3:1 Phase True Online UPS

Contact for price

Need a quote?

Email our team for availability, installation support, and pricing.

Email us

Description

SPECIAL FEATURES:

True on-line dual conversion design
Generator Compatible
All Protections over/low-voltage, overcurrent, overload
Intelligent Battery Management, extended battery life
Intelligent Self diagnose function, all kinds of fault protection
Modularized design of subsystems
Bypass back feed protection, battery leakage protection
Parallel Redundancy design, increase the system reliability
Customizable wide input voltage range
Large size input LCD display on front panel

Specification

Technical Specifications: (3:1 Phase)

Model

3P15K

3P20K

3P30K

3P40K

3P60K

3P80K

Capacity (VA/Watts)

15KVA/ 13.5 KW

20 KVA/ 18 KW

30 KVA/ 27 KW

40 KVA/ 36 KW

60 KVA/ 54 KW

80 KVA/ 72 KW

INPUT

Operating Voltage range

380/400/415Vac (380-25% 415+20%), (3Ph+N+PE)

Operating frequency range

50/60Hz (±5Hz)

Power factor

>0.9(with filter)

OUTPUT

Output voltage

200/220/230Vac (± 1%)

Output frequency

50/60Hz (± 0.05%)

Harmonic distortion (THD)

<3% (linear load)

Crest factor

3:1 (Max.)

Efficiency

>89%

>90%

>91%

>92%

BYPASS

Rated voltage

200/220/230Vac

Rated frequency

50/60Hz

Voltage protection range

Upper limit: +20% (+10%, +15%, +20% adjustable)
Lower limit: -40%, -20%, -30%, -40% adjustable)

Frequency protection range

± 10% (±2.5%, ±5%, ±10%, ±20% adjustable)

BATTERY

Battery voltage

384Vdc

SYSTEM FEATURES

Transfer time

Oms (Line mode ↔ Battery mode)

Overload

110% / 60min, 125% / 10min, 150% / 1min

LED display

Input, Inverter, Bypass, Battery, Output, Status

LCD display

I/O voltage, frequency, power factor, battery voltage, current, battery status, load percentage,
UPS status, history record

Communication interface

Dry contact, RS232, RS485, SNMP card (Optional)

Optional

Harmonic filter, SNMP adapter, LBS cables, battery temperature sensor,
Bypass current- sharing inductor

ENCIRONMENTAL

Operating temperature

0~40°C

Storage temperature

-25°C ~ 55°C (non ─ condensing)

Humidity range

<1500m

Noise level

<60dB

<65dB

PHYSICAL

Dimension W x D x H (mm)

570 x 800 x 1195

880 x 760 x 1600

Net weight (KG)

217

273

316

330

483

525

Shipping weight (KG)

272

328

371

385

553

595

STANDARDS

Safety

IEC/EN62040-1; IEC/EN60950-1

EMC

IEC/EN602040-2; IEC61000-4-2: IEC61000-4-3; IEC61000-4-4;
IEC61000-4-5; IEC61000-4-6; IEC 61000-4-8

Additional Information

Name	Apollo 15~80KVA 3:1 Phase True Online UPS
Categories	UPS
Subcategories	Online UPS
Summary	Apollo True on-line dual conversion 3:1 Phase Online UPS
Tags	3:1 Phase Online UPS, Apollo 15-80KVA UPS, Apollo UPS, Online UPS
