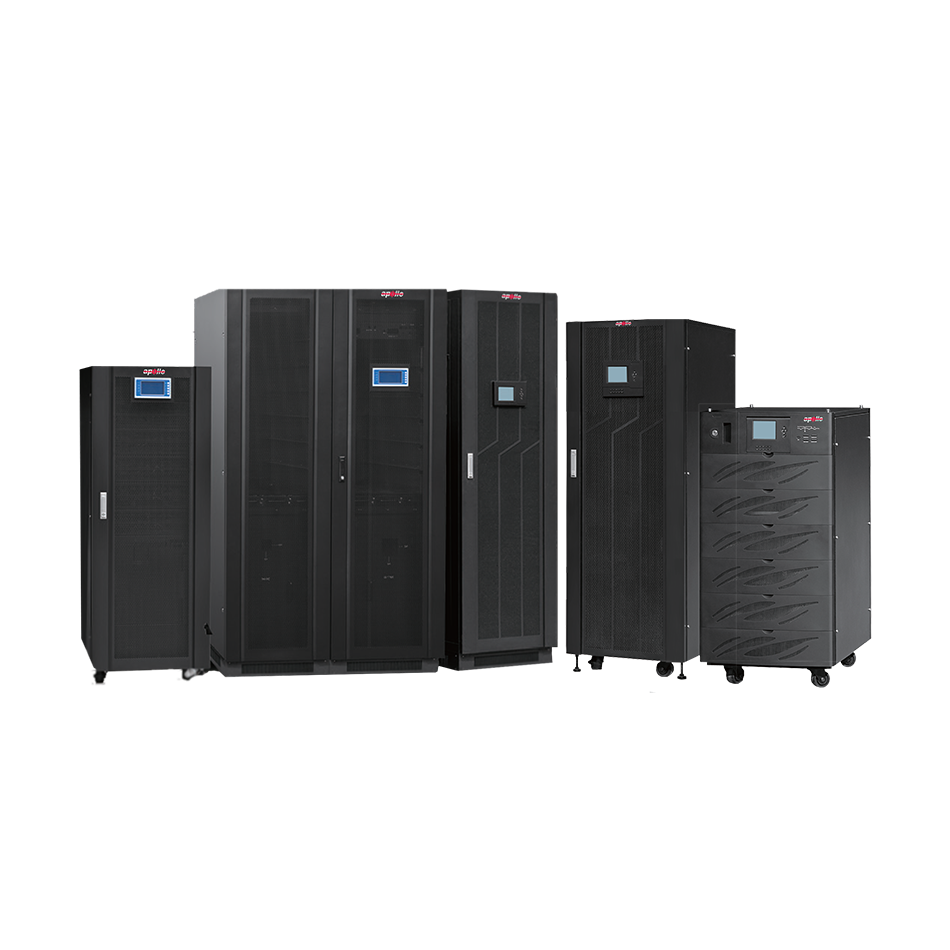

Name: Apollo 10~800KVA 3:3 Phase True Online UPS
Brand: Apollo
SKU: 61
Availability: InStock

Description

SPECIAL FEATURES:

True on-line dual conversion design
Generator Compatible
All Protections over/low-voltage, overcurrent, overload
Intelligent Battery Management, extended battery life
Intelligent Self diagnose function, all kinds of fault protection
Modularized design of subsystems
Bypass back feed protection, battery leakage protection
Parallel Redundancy design, increase the system reliability
Customizable wide input voltage range
Large size input LCD display on front panel

Specification

Technical Specifications: (3:3 Phase)

Model

3P10K

3P15K

3P20K

3P30K

3P40K

3P60K

3P80K

Capacity (VA/Watts)

10K/8K

15K/12K

20K/16K

30K/24K

40K / 32K

60K / 48K

80K / 64K

INPUT

Nominal voltage

380/400/415Vac, (3Ph+N+PE)

Operating voltage range

208~478Vac

Operating frequency range

40 ~ 70Hz

Power factor

≥0.99

Harmonic distortion (THD)

2%(100% nonlinear load)

Bypass voltage range

Max. Voltage: 220V +25% (optional +10%, +15%, +20%) 230V 20% (optional +10%, +15%)
240V 15% (optional +10%), Min voltage: -45% (optional -20%, -30%), Frequency protection rage: ±10%

Generator input

Support

OUTPUT

Output voltage

380/400/415Vac, (3Ph+N+PE)

Voltage regulation

±1%

Power factor

0.8/0.9 (Customized)

Output frequency

1.Line Mode: ±1%/±2%/±4%/±5%/±10% of the rated frequency (optional)
2.Battery Mode: (50/60±0.2%)Hz

Crest factor

3:1

Harmonic distortion (THDv)

≤2% with linear load
≤5% with non linear load

Efficiency

94.5%

95%

BATTERY

Battery voltage

Standard unit: ±216Vdc; Long run unit Optional voltage: ±192V\±204V\±216V\±228V\±240Vdc

Battery type

12V/38Ah (standard unit)

Charge Current (A)
(charge current can be set according to battery capacity installed)

5.7A (Max./Standard unit)
6.0A (Max./Long run unit)

12A (Max.)

18A (Max.)

SYSTEM FEATURES

Transfer time

Utility to Batter : 0ms; Utility to bypass: 0ms

Overload

Line Mode

Load ≤110%: last 60min, ≤125%: last 1min, ≥150% turn to bypass mode immediately

Bat. Mode

Load ≤110%: last 10min, ≤125%: last 1min, ≤150%: last 5S, ≥150% shut down UPS immediately

Short circuit

Hold Whole System

Overheat

Line Mode: Switch to Bypass; Backup Mode: Shut down UPS immediately

Low battery voltage

Alarm and Switch off

Self-diagnostics

Upon Power On and Software Control

EPO (optional)

Shut down UPS immediately

Battery

Advanced Battery Management

Nose Suppression

Complies with EN62040-2

Audible & Visual

Line Failure, Battery Low, Overload System Fault

Status LED & LCD display

Line Mode, Bypass Mode, Battery Low, Battery Bad, Overload & UPS Fault

Reading on the LCD display

Input Voltage, Input Frequency, Output Voltage, Output Frequency, Load Percentage, Battery Voltage & Inner Temperature

Communication interface

RS232, RS485, Parallel, Intelligent slot, Relay card (optional), SNMP card (optional)

ENCIRONMENTAL

Operating temperature

0~40°C

Storage temperature

-25 ~ 55°C

Humidity range

0 ~ 95% (non ─ condensing)

Altitude

<1500m

Noise level

<55dB

PHYSICAL

Dimension W x D x H (mm)

780 x 600 x 1200

Net weight (KG)

S:598
H:129

S:600
H:131

S:602
H:133

S:603
H:134

170

172

199

STANDARDS

Safety

IEC/EN62040-1; IEC/EN60950-1

EMC

IEC/EN602040-2; IEC61000-4-2: IEC61000-4-3; IEC61000-4-4;
IEC61000-4-5; IEC61000-4-6; IEC 61000-4-8

Technical Specifications: (3:3 Phase)
Model	3P100K	3P120K	3P160K	3P200K	3P300K		3P400K	3P500K	3P600K	3P800K
Capacity (VA/Watts)	100KVA/ 90KW	120KVA/ 108KW	160KVA/ 144KW	200KVA/ 180KW	300KVA/ 270KW		400KVA/ 360KW	500KVA/ 450KW	600KVA/ 540KW	800KVA/ 720KW
INPUT
Operating Voltage range	380/400/415Vac (-25%/+20%), (3Ph+N+PE)
Operating frequency range	50/60Hz (±5Hz)
Power factor	>0.9 (with filter)					>0.85
OUTPUT
Output voltage	380/400/415Vac (± 1%)
Max. output current	152A	182A	243A	304A	456A		608A	760A	912A	1216A
Output frequency	50/60Hz (± 0.05%)
Harmonic distortion (THD)	<2% (linear load)
Crest factor	3:1 (Max.)
Efficiency	>92%	>92%	>92%	>92.5%	>93%		>94%	>95%	>95%	>96%
BYPASS
Rated voltage	380/400/415Vac
Rated frequency	50/60Hz (auto ─ sensing)
Voltage protection range	Upper limit: +20% (+10%, +15%, +20% adjustable) Lower limit: -40%,(-10%, -20%, -30%, -40% adjustable)
Frequency protection range	± 10% (±2.5%, ±5%, ±10%, ±20% adjustable)
BATTERY
Battery voltage	384Vdc					480Vdc
SYSTEM FEATURES
Transfer time	Oms (Line mode ↔ Battery mode)
Overload	110%/60min, 125%/10min, 150%/1min
LED display	Input, Inverter, Bypass, Battery, Output, Status
LCD display	I/O voltage, frequency, power factor, battery voltage, current, battery status, load percentage, UPS status, history record, settings
Communication interface	Dry contact, RS232, RS485, SNMP card (Optional)
Optional	Harmonic filter, SNMP adapter, LBS cables, battery temperature sensor, Bypass current- sharing inductor
ENCIRONMENTAL
Operating temperature	0~40°C
Storage temperature	-25°C ~ 55°C
Humidity range	0 ~ 95% (non-condensing)
Altitude	<1500m
Noise level	<65dB					<70dB
PHYSICAL
Dimension W x D x H (mm)	1160x805x1600 (6P) 1520x830x1600 (12P)		1400x945x1900 (6P) 1640x1040x1900(12P)		1640x1040x1900(6P) 1760x1040x1900(12P)			2800x1040x1900(12P)		3900x1100 X1950(12P)
Net weight (KG)	800/1100	903/1250	1219/1774	1425/1893	1780/2580		2050/3050	3700	4500	6400
Shipping weight (KG)	890/1190	993/1293	1349/1954	1555/2073	1950/2850		2200/3300	3950	4750	6700
STANDARDS
Safety	IEC/EN62040-1; IEC/EN60950-1
EMC	IEC/EN602040-2; IEC61000-4-2: IEC61000-4-3; IEC61000-4-4; IEC61000-4-5; IEC61000-4-6; IEC 61000-4-8

Additional Information

Name	Apollo 10~800KVA 3:3 Phase True Online UPS
Categories	UPS
Subcategories	Online UPS
Summary	Apollo True on-line dual conversion 3:3 Phase Online UPS
Tags	3:3 Phase Online UPS, Apollo 10-800KVA UPS, Apollo UPS, Online UPS

Files 1

PDF opens in the reader. Images can be viewed here. Word and Excel files are available for download.

Apollo Online UPS 10 KVA-800 KVA (3X3 phase) - Datasheet.pdf
