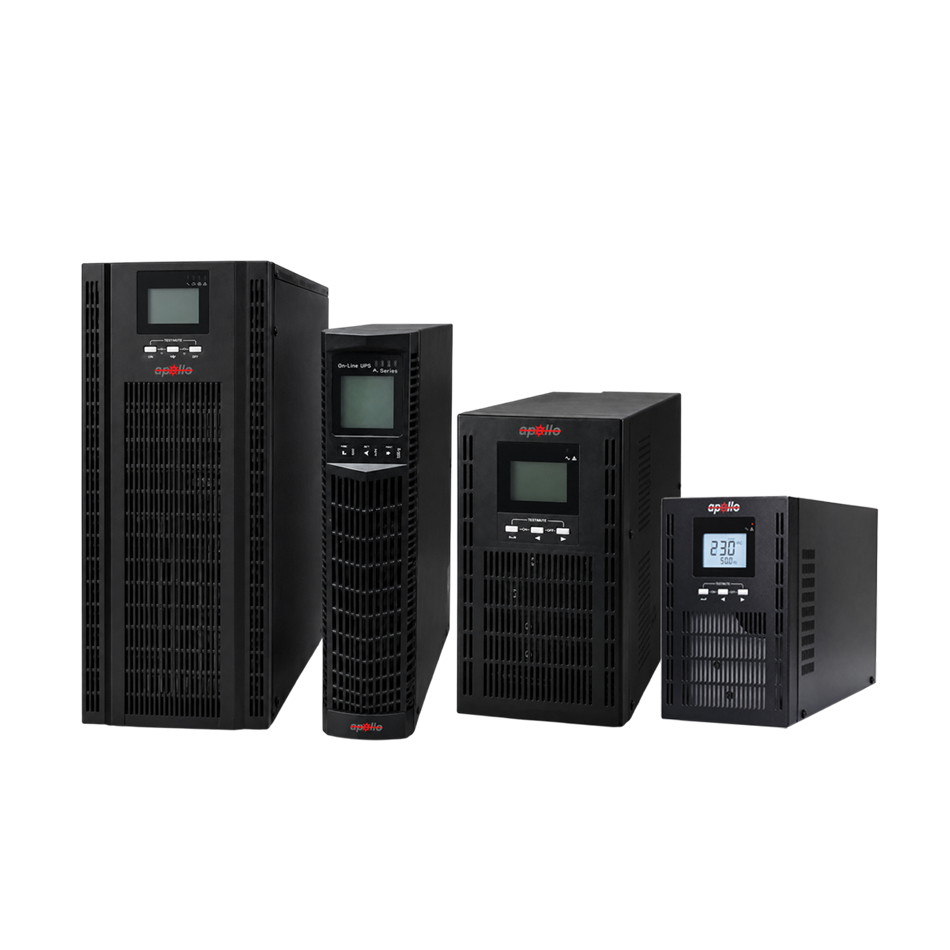

Apollo 1~10KVA Single Phase Online UPS

Apollo True on-line dual conversion Single Phase Online UPS
Apollo 1~10KVA Single Phase Online UPS

Apollo 1~10KVA Single Phase Online UPS

Contact for price
Need a quote?

Email our team for availability, installation support, and pricing.

Email us
Categories
UPS
Subcategories
Online UPS
Tags
Apollo 1-10KVA UPS Apollo UPS Online UPS Single Phase Online UPS
Share Email

Description

SPECIAL FEATURES:
  • True on-line dual conversion design
  • Generator Compatible
  • All Protections over/low-voltage, overcurrent, overload
  • Intelligent Battery Management, extended battery life
  • Intelligent Self diagnose function, all kinds of fault protection
  • Modularized design of subsystems
  • Bypass back feed protection, battery leakage protection
  • Parallel Redundancy design, increase the system reliability
  • Customizable wide input voltage range
  • Large size input LCD display on front panel

Specification


Technical Specification
MODEL
 2100HS
 2150HS
 2200HS
 2300HS
 2B6K
 2B10K
2100HS-L
 2150HS-L
 2200HS-L
 2300HS-L
 2B6K-L
 2B10K-L
CAPACITY (VA Rating)
 1.0 KVA
 1.5 KVA
 2.0 KVA
 3.0 KVA
 6.0 KVA
 10.0 KVA
INPUT
 Voltage
 Single Phase, 110Vac~ 290Vac
Frequency
 50 Hz (60 Hz on request) ± 5%
Power factor
 > 0.98% (full load)
OUTPUT
 Voltage
 220Vac
Voltage Regulation
 220Vac ± 0.5%
Transient Response
 ± 3~4% under full load, change and corrected within 2 ms
Wave form
 Pure Sinewave THD<3%
Power factor
 0.7 ~ 1 (lagging)
Frequency
 50 / 60Hz, ± 0.5%
Crest Factor
 3:1
Overload
 Continuous alarming, switch to bypass, auto recovery upon removing of load
Overload Capacity
 <110% load Continuous
110-125% load 12 Minutes
125-150% load 10 Minutes
>150% load: by pass
Battery
 Battery Type
 Maintenance free lead-acid batteries
DC Voltage
 36VDC
 48VDC
 72VDC
 96VDC
 192VDC
 192VDC
Backup time
 15-30 minutes depending on load
External Battery
 Up to 8 hours long time backup depends on external battery
Supplementary Charger
 Optional 200W/500W charger for extended back-up application
Recharge time
 5~8 hours
Cold Start
 Yes, UPS cab be started without AC source
Battery Cabinet
 Internal Battery (External Battery back is optional)
 External Battery back
TRANSFER TIME
 Zero (0) millisecond, Inverter to Bypass (Overload)
PROTECTIONS
 High Voltage, Overload, Overheating, bypass, Short circuit, Noise Filtering, Spike, Surge
EMI FILTER
 10~100 KHz at 40dB, 100KHz~100MHz at 70Db
ALARM
 Audio alarm
 Keep 90 seconds at a time interval of 4 seconds
Battery Low
 Auto shutdown upon complete discharge of battery and auto tum-on upon recovery of utility power
Fault
 Continuous alarming
INTERFACE
 RS232 / SNMP
SOFTWARE MANGEMENT
 AC fault, low battery, intelligent software for shutdown by remote control
TRONSFORMER TYPE
 Built-in Galvanic Isolation Transformer
General
 Dimensions (mm)
 215x410x145
 330x470x190
 485x450x190
 485x450x190
 585x230x580
 480x340x845
Weight (KG)
 15 / 8.5
 30 / 14
 38 / 17
 40 / 19
 77 / 126
 106
OPERATING ENVIRONMENT
 Temperature
 0 ~ 40°C (32 - 104°F)
Humidity
 30 ~ 90% non-condensing
Attitude
 <1500M above sea level
Audio noise
 <53dB-65dB at 1 meter distance
