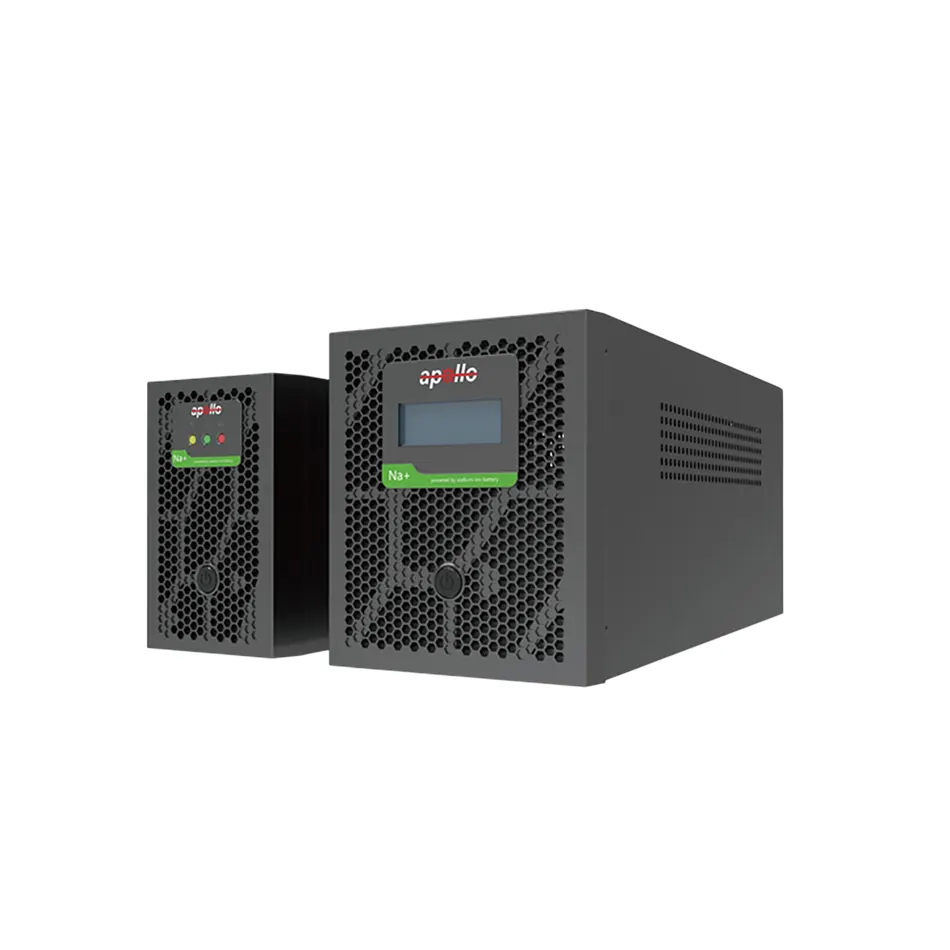

Apollo 3KVA Sodium-Ion Online UPS

Apollo 3KVA Sodium-Ion Online UPS
Apollo 3KVA Sodium-Ion Online UPS
Apollo 3KVA Sodium-Ion Online UPS

Apollo 3KVA Sodium-Ion Online UPS

Contact for price
Need a quote?

Email our team for availability, installation support, and pricing.

Email us
Categories
UPS
Subcategories
Sodium Online UPS
Tags
3KVA Apollo 3KVA Online UPS Sodium-Ion UPS
Share Email

Description

  • True double conversion on-line;
  • Output Power factor 1.0;
  • Next-Gen bridgeless PFC technology, line efficiency up to 96%;
  • Lighter weights for easier transportation and installation
  • Powered by sodium-ion batteries;
  • Fast-charge less than 1 hour;
  • Ultra-long battery life up to 3000 cycles;
  • Support operation at -20℃;

Specification

Model
 NA3KS
Capacity
 3kVA/3kW
Input
Nominal Voltage
 208/220/230/240VAC
Voltage Range
 100-300VAC
Frequency
 40-70Hz
Power Factor
 >0.99
THDi
 <4% (linear load);＜5% (non-linear load)
Output
Nominal Voltage
 208/220/230/240VAC
Voltage Regulation
 ±1%
Frequency
 50/60Hz±0.1%
Crest Ratio
 3:1
THDu
 <3% (linear load);＜5%（non-linear load）
Transfer Time
 Line mode to battery mode, 0ms; inverter to bypass, 4ms (typical)
Power Factor
 1.0
Waveform
 Pure sine wave
Overload time
 Line mode:
 Battery mode:
Max 30min@102%-110% load
 1min@102%-110% load
Max 10 min@110-130% load
 10s@110-130% load
Max 30s@130%-150% load
 3s@130%-150%load
200ms@＞150% load
 200ms@＞150% load
Efficiency
Line Mode
 ≥94.5%
ECO Mode
 ≥97%
Battery
Energy
 614.4Wh
Run Time(100%Load)
 4.5min
Run Time(50%Load)
 15.0min
Charging Time
 < 1 hour (Temperation 25℃)
Management
Intelligent port
 RS232/USBport/SNMP card (optional)/Dry contact kit(optional)
Environment
Operation Temperature
 -20-40℃
Storage temperature
 -20~50℃
Relative Humidity
 0-95%(non-condensing)
Noise
 <50dB@1 meter
Altitude
 Up to1000m without derating
Standard & Certification
Standard and Approvals
 EN/IEC 61000,EN/IEC 62040
Physical
Case size(L*W*H)(mm)
 390*190*320
Packing Weight(KG)
 16.3
Carton size(L*W*H)(mm)
 500*430*285

Additional Information

Name Apollo 3KVA Sodium-Ion Online UPS
Categories UPS
Subcategories Sodium Online UPS
Summary Apollo 3KVA Sodium-Ion Online UPS
Tags 3KVA, Apollo 3KVA, Online UPS, Sodium-Ion UPS

Files 1

PDF opens in the reader. Images can be viewed here. Word and Excel files are available for download.

Apollo 3KVA Sodium-Ion Online UPS - Datasheet.pdf
