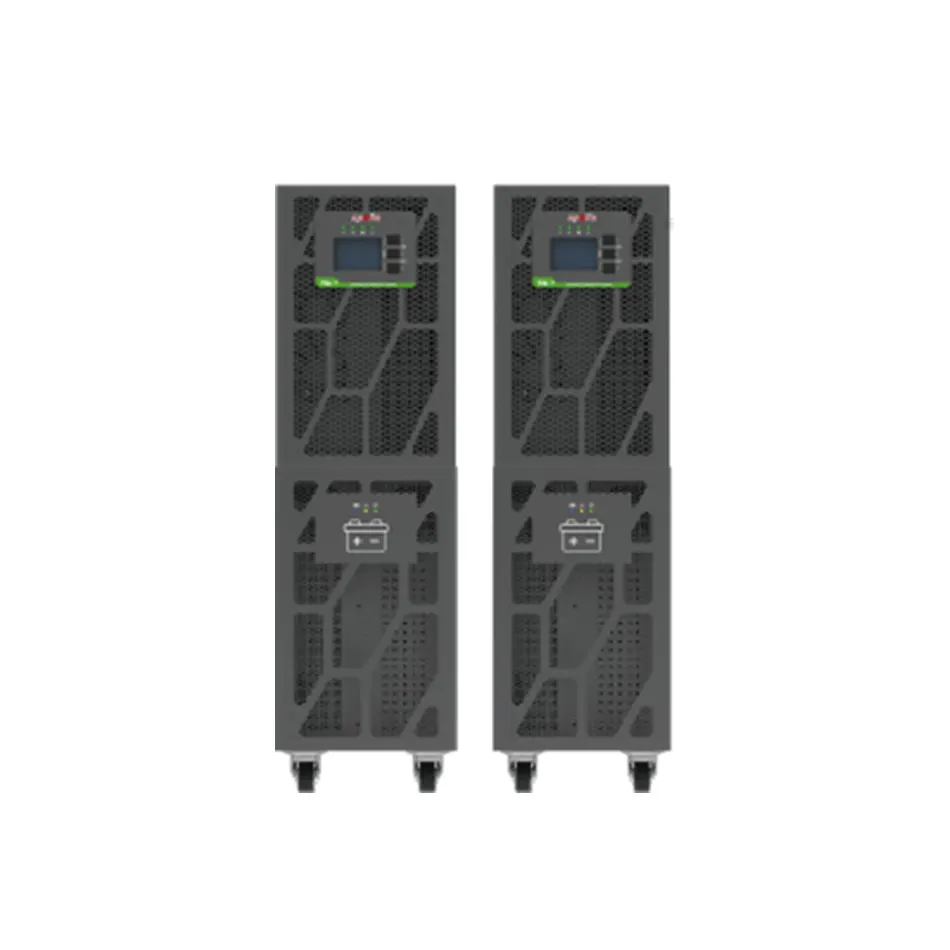

Name: Apollo 6KVA Sodium-Ion Online UPS
Brand: Apollo
SKU: 36
Availability: InStock

Apollo 6KVA Sodium-Ion Online UPS

Contact for price

Need a quote?

Email our team for availability, installation support, and pricing.

Email us

Model	NA6KS
Capacity	6kVA/6kW
Input
Nominal Voltage	208/220/230/240VAC, L+N+PE
Voltage Range	110-300VAC
Frequency	40-70Hz
Power Factor	>0.99
THDi	<3% (linear load);＜5% (non-linear load)
Output
Nominal Voltage	208/220/230/240VAC, L+N+PE
Voltage Regulation	±1%
Frequency	50/60Hz±0.1%
Crest Ratio	3:1
THDu	≤2% (linear load); ≤5%（non-linear load）
Transfer Time	Line mode to battery mode, 0ms; inverter to bypass, 4ms (typical)
Power Factor	1.0
Waveform	Pure sine wave
Overload time	Line mode:	Battery mode:
	10min@102%-110% load	10min@102%-110% load
	1min@110-130% load	1min@110-130% load
	10s@130%-150% load	10s@130%-150% load
	<200ms@150% load	＜200ms@150% load
Efficiency
Line Mode	≥95%
ECO Mode	≥98.5%
Battery
Energy	1228.8Wh
Run Time(100%Load)	5.0min
Run Time(50%Load)	15.5min
Charging Time	< 1 hour (Temperation 25℃)
Management
Intelligent port	RS232/USB port/SNMP card (optional)/Dry contact kit (optional)
Environment
Operation Temperature	-20-40℃
Storage temperature	-20~50℃
Relative Humidity	0-95%(non-condensing)
Noise	<56dB@1 meter
Altitude	Up to1000m without derating
Standard & Certification
Standard and Approvals	EN/IEC 61000, EN/IEC 62040
Physical
Case size(LWH)(mm)	450190700
Packing Weight(KG)	31.4
Carton size(LWH)(mm)	555295750

Name	Apollo 6KVA Sodium-Ion Online UPS
Categories	UPS
Subcategories	Sodium Online UPS
Summary	True double conversion on-line
Tags	Apollo 6KVA, Online UPS, Sodium-Ion UPS

PDF opens in the reader. Images can be viewed here. Word and Excel files are available for download.

Apollo 6KVA Sodium-Ion Online UPS - Datasheet.pdf

PDF · pdf

Download
